| Item | Value |
|---|---|
| Measured gases | LEL flammable gas |
| Measuring range | 0 ～ 100%LEL |
| Detection principle | catalytic combustion |
| Accuracy | |
| Resolution | 1%LEL |
| Response time | < 20 seconds |
| Ingress protection | IP65 |
| Explosion protection | |
| Operating temperature | -40℃～ +70℃ |
| Power supply | |
| Output signal |
ToxiRAE LEL Personal Flammable Gas Detectors PGM-1880 is a pocket-sized portable flammable gas detector that provides a high level of safety protection for workers in hazardous environments. The ToxiRAE LELgas detector provides high-accuracy, real-time detection of flammable gases in the range of 0 ~ 100% LEL.

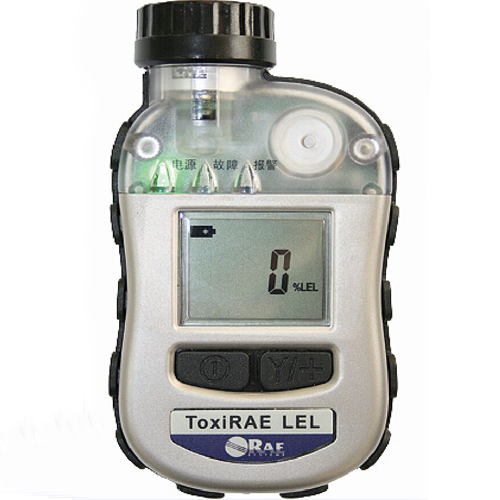

Huarui ToxiRAE LEL Personal Flammable gas detectors PGM-1880 Product Picture:

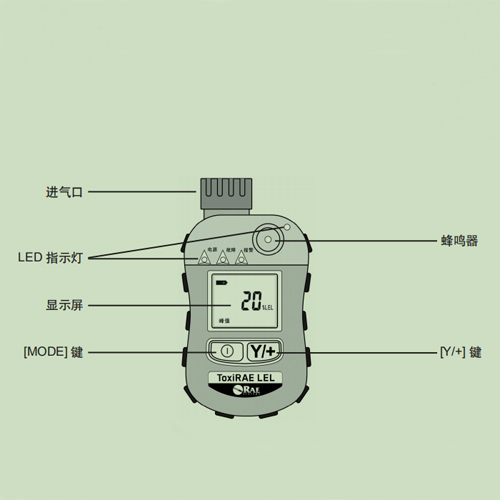

Detailed explanation of Huarui's personal Flammable gas detectors ToxiRAE LEL:
Huarui ToxiRAE LEL Personal Flammable gas detectors PGM-1880 details
|
Product Type:
|
Diffusion LEL detector with data storage
|
|
Size:
|
120mm×65mm×33mm
|
|
weight
|
210g
|
|
Detect Measuring range
|
0 ～ 100%LEL
|
|
Resolution
|
1%LEL
|
|
Response time T90
|
< 20 seconds
|
|
battery
|
Built-in rechargeable lithium battery
|
|
Working hours
|
A full charge is greater than 12 hours
|
|
Charging time
|
Less than 4 hours
|
|
charger
|
Single charger with USB port
|
|
Alarm style
|
Audible alarm 75 dB@1m, LED alarm light, vibration alarm
|
|
Keyboard
|
2 keys
|
|
Sampling method
|
Diffusion
|
|
Data logging
|
25 records
|
|
calibration
|
Two-point calibration, calibration value can be set
|
|
Ingress protection
|
IP65
|
|
Protection
|
Calibration, alarm and other limits are password protected
|
|
Certification
|
Ex ia IIC T4 Ga
CCCF
CMC
|
|
Operating temperature
|
-40℃～ +70℃
|
|
Humidity
|
0 ~ 90%RH (non-condensing)
|
|
Warranty
|
One year warranty
|
Standard configuration:
