MDA Scientific Midas single gas detector

Specifications

Product Description:

Midas® is acclaimed for its innovative Chemcassette® range of ultra-agile low ppmtoxic gas monitoring analyzers and our global network of service engineers (24/7, 7 days a week).

Midas® samples can be used at intervals of up to 30 meters (100 feet) and use control technology to automatically adjust the flow rate to ensure error-free gas detection and manipulation. Honeywell Analytics designs and manufactures its exclusive automated production line of improved sensors, guaranteeing unmatched quality and reliability.

The Midas®' compact form factor and easy-to-inspect metal body design make it easy to install in dense, day-to-day complex process environments or space-critical environments. The Midas® comes with a scale of built-in selectable power and communication modes, including 3 built-in relays, 0-22mA analog outputs, Modbus/TCP Ethernet digital outputs, and the new Power over Ethernet (PoE) protocol—a single Ethernet connection for all power, control, and communication devices. The Midas® architecture significantly reduces the cost of PLC and FieldBus system integration.

Midas® is used for the detection of toxic gas, ambient gas, and flammable gas in typical industrial environments through the transmitter platform. Pre-calibrated "plug and play" smart sensors allow for quick and easy sensor replacement without tools and prevent misuse or discarded sensor errors by operators. High-brightness LEDs as well as intuitive graphs display gas readings and alarm levels when displaying interactive menus (combined with password-protected menus for parameterization, detection and calibration).

Midas® is a highly agile and reliable gas detector for toxic gas and flammable gas used in the semiconductor industry and other general industries. With extended sensor calibration cycles, flexible communication modes, and sensor self-diagnostics and automatic flow control, Medias® significantly reduces the operating costs required for gas detection.

Midasgas detector supports more than 40 gas detections

MDA Scientific Midas Box

MDA Scientific Midas Parts

Honeywell MIDAStoxic gasflammable gasoxygendetector instruction manual

Product highlights

• Midas® is a highly sensitive and reliable gas detector for toxic gas and flammable gas used in the semiconductor industry and other general industries. With extended sensor calibration cycles, flexible communication modes, and sensor self-diagnostics and automatic flow control, Medias® significantly reduces the operating costs required for gas detection.

          Midas® is used for the detection of toxic gas, ambient gas, and flammable gas in typical industrial environments via the transmitter platform. Pre-calibrated "plug and play" smart sensors allow for quick and easy sensor replacement without tools and prevent operator misuse or abandoned sensor errors. High-brightness LEDs as well as intuitive graphs display gas readings and alarm levels when displaying interactive menus (combined with password-protected menus for parameterization, detection and calibration).

          The Midas®' compact shape and easy-to-access metal body design make it easy to install in dense, day-to-day complex process environments or space-critical environments. The Midas® comes with standard built-in selectable power and communication modes, including 3 built-in relays, 0-22mA analog outputs, Modbus/TCP Ethernet digital outputs, and the new Power over Ethernet (PoE) protocol—a single Ethernet connection for all power, control, and communication devices. The Midas® architecture significantly reduces the cost of PLC and FieldBus system integration.

          Midas® can sample distances of up to 30 meters (100 feet) and uses control technology to automatically adjust the flow rate to ensure error-free gas detection operations. Honeywell Analytics designs and manufactures its unique advanced automated sensor production line that guarantees unmatched quality and reliability.

          Midas® is acclaimed for its innovative Chemcassette® range of ultra-sensitive low ppmtoxic gas monitoring analyzers and our global network of service engineers (24/7, 7 days a week).

Midasgas detector has a variety of communication methods and is highPrecision and sensitivity

Instrument features:

• It can be used on more than 40 gases with a two-year extended shelf life
• Smart sensor chuck with built-in "electronic calibration" certificate
• Built-in level 1 and 2 alarms and fault relays
• Power over Ethernet (PoE) communication and power delivery platform
• Keyboard interface and remote web browser interface
• Optional modules for thermal crackers and LonWorks interfaces connected to any transmitter
• Password protection menu management is used to maintain system integrity
• High-brightness LEDs and intuitive icon display, large backlit LCD display
• Factory-calibrated sensors reduce frequent real gas testing
• 0-22mA analog output from Gree with fault and status reports
• ModBus/TCP Ethernet communication can be easily connected to control and alarm systems for control connection and service
• Powerful sampling pump system for sampling distances of up to 30 meters (2-year service life)
• Interactive training simulator tool
• CE marked for full immunity to electromagnetic interference
• Reflex® sensor operating status check to improve detector safety and reliability
• TempraSureTM®Temperature Compensation Base (as appropriate)
• Browse the status records of the sensor history
• Technology to confirm gas leaks to avoid false alarms

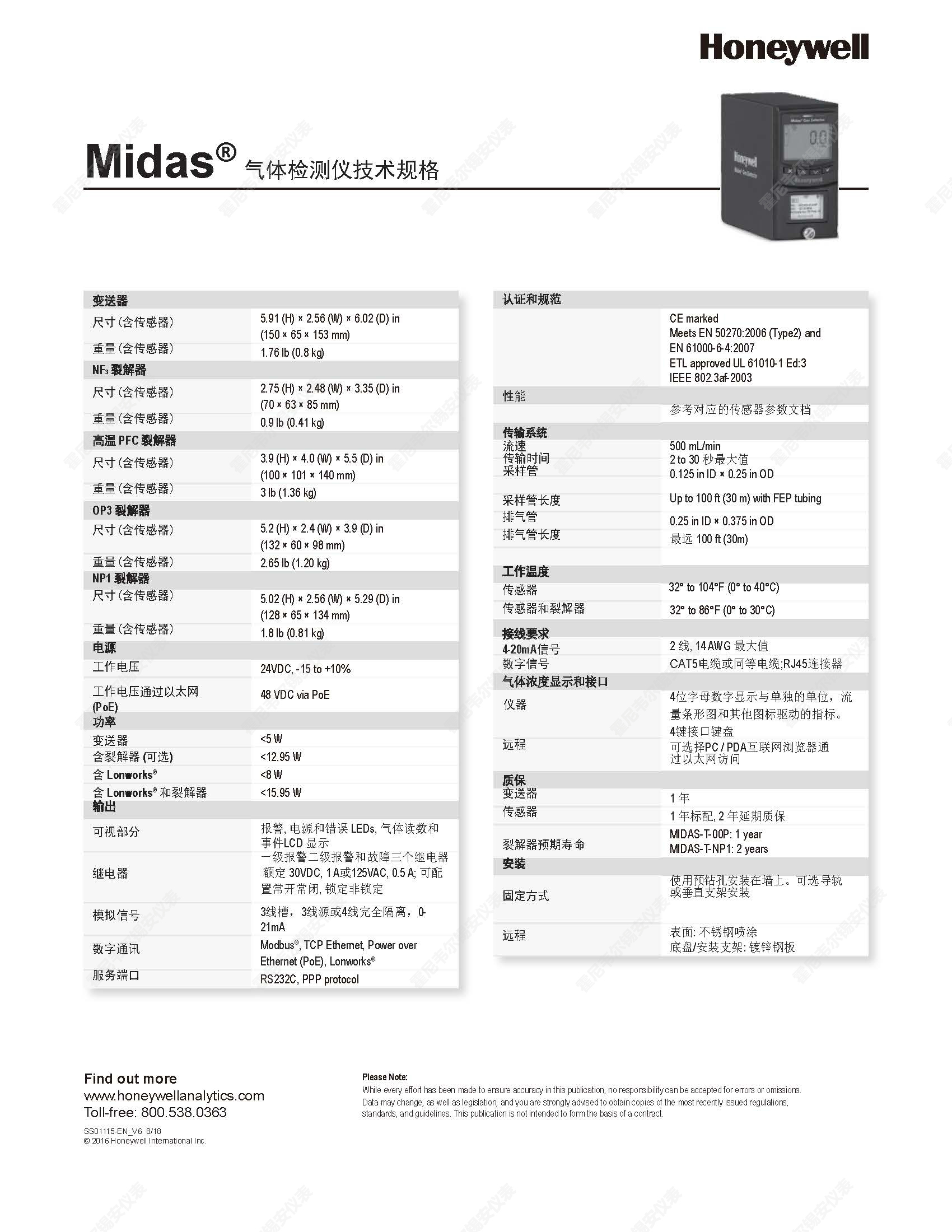

Technical parameters

• Measuring range of detectable gases:



   Gas Name	 Chemical formula	 Scope
   Ammonia	NH3	0-100ppm
   Hydrogenated arsenic	AsH3	0-0.2ppm
  Boron trichloride	BCl3	0-8.0ppm
   Boron trifluoride	BF3	0-8.0ppm
  Boron trifluoride (low concentration)	BF3	0-2.0ppm
  Bromine	Br2	0-0.4ppm
  carbon dioxide	CO2	0-2% vol
  carbon monoxide	CO	0-100ppm
  Chlorine	Cl2	0-2.0ppm
   Chlorine dioxide	ClO2	0-0.4ppm
   Chlorine trifluoride	ClF3	0-0.4ppm
  Boronethane	B2H6	0-0.4ppm
  Dichloromethysilane	H2SiCl2	0-8.0ppm
  Difluoride methane	CH2F2	0-120ppm
  Ethylsilane	Si2H6	0-20ppm
  Fluorine	F2	0-4.0ppm
  germanium	GeH4	0-0.8ppm
  Hexafluorobabutane	C4F6	0-40ppm
  Hydrogen (% Lower Explosive Limit (LEL))	H2	0-100% LEL
  Hydrogen (ppm)	H2	0-1000ppm
  Hydrogen bromide	HBr	0-8.0ppm
  Hydrogen chloride	HCl	0-8.0ppm
  Hydrogen cyanide	HCN	0-20ppm
  Hydrogen fluoride	HF	0-12ppm
  Hydrogen fluoride (low concentration)	HF	0-2.0ppm
  hydrogen sulfide	H2S	0-40ppm
  Hydrogen sulfide (high concentration)	H2S	0-100ppm
   methane (% Lower Explosive Limit (LEL))	CH4	0-100% LEL
  Methyl fluorine	CH3F	0-60ppm
  Nitrogen dioxide	NO2	0-12ppm
  Nitric oxide	NO	0-100ppm
  Nitrogen trifluoride	NF3	0-40ppm
  Octafluorocyclopentene	C5F8	0-40ppm
  oxygen ability & hypoxia	O2	0-25% vol
  ozone	O3	0-0.4ppm
  Phosphine	PH3	0-1.2ppm
  Phosphorus hydroxide	POH3	0-0.4ppm
  Silane	SiH4	0-20ppm
  Silane (low concentration)	SiH4	0-2.0ppm
  Sulfur dioxide	SO2	0-8.0ppm
   Sulfur hexafluoride	SF6	0-8000pm
  Sulfur tetrafluoride	SF4	0-0.4ppm
  Ethyl orthosilicate	TEOS	0-40ppm
  Tungsten hexafluoride	WF6	0-12ppm
  Tungsten hexafluoride (low concentration)	WF6	0-2.0ppm

• Transmitter dimensions (unit with sensor): 120 mm high, 63 mm wide, 150 mm thick
• Transmitter weight (unit with sensors): 0.8 kg

MDA Scientific Midas side one

MDA Scientific Midas side two

• (Low temperature version) pyrolyzer size: 70 mm high, 63 mm wide, 83 mm thick
• (Low temperature version) pyrolyzer weight: 0.41 kg
• Pyrolyzer size: 113 mm high, 101 mm wide, 140 mm thick
• (High temperature version) pyrolyzer weight: 1.25 kg
• Operating Voltage: 24V DC Nominal +/-10%
• Power over Ethernet operating voltage: 36-57VDC (via PoE), 48V DC nominal
• Transmitter component power consumption: about 5.0 watts
• Power consumption with pyrolyzer (optional): less than 12.95 watts
• Visual outputs: alarms, power and faults, etc., as well as backlit LCD displays with gas readings and results
• Relay output: 3 relays for alarm 1, alarm 2 and fault respectively, rated value: 1.0A@30VDC or 0.5A@125VAC; Configurable NO (normally open) or NC (normally closed), locked or unlocked
• Analog output: 0-22mA with 2 channels of isolation
• Digital communication: standard, ModBus/TCP Ethernet; Power over Ethernet (PoE) with optional LonWorks
• Service port: RS 232C/PPP protocol
• European certification: CE marked; Complies with EN 50270:1990 (Type 2) and EN 55011:2000
• Environmental certification: ETL audit approval UL 61010B and CSA-C22.2 No. 1010.1-92
• Performance Certifications: Designed to UL 2075 (Pending 2004)
• Electrical certification: IEEE 802.3af-2003
• Flow rate: 500 ml/min
• Transit time: 2-30 seconds max
• Performance: LDL<LAL; LAL=1/2TLV (typical 12% FSD); FSD=4×TLV
• Sampling Pipe Length: Up to 30 meters (100 feet) with FEP pipe, depending on gas type
• Sampling environmental point monitoring: Online air filter is recommended
• Sampling exhaust pipe length: up to 30 m (100 ft)
• Sample tubing: 6.35 mm OD (1/4 inch) × 3.18 mm (1/8 inch), FEP, up to 30 m (100 ft) depending on gas type
• Exhaust duct: 6.35 mm OD (1/4 inch) × 3.18 mm (1/8 inch), FEP, 30 m (100 ft)
• Operating temperature of the unit with sensors: 0-40 degrees Celsius
• Wiring requirements for 4-20mA/DC power/relay: 14AWG max
• Digital wiring requirements: shielded CAT 5 cable or equivalent, RJ 45 connector
• Instrument display and display interface: 4-digit alphanumeric display with separate measurement parts, flow rate bar graph and other indicators; 4-button membrane keyboard
• Remote Interface: PC/PDA web browser accessible via Ethernet or other bus systems
• Transmitter parts warranty: 1 year
• Sensor Chuck Warranty: Standard, 1 Year; With extended warranty Item: 2 years
• Life expectancy of pump: greater than 2 years
• Mounting method: Wall mounting using two pre-drilled holes in the rear fuselage
• Mounting material: steel box with paint cover

Application range

Midas is a highly sensitive and reliable toxic and combustible gas detector for use in the semiconductor industry and general industrial sites. With up to two years of sensor calibration cycles, flexible communication modes, sensor self-diagnostics and automatic flow control, Midas significantly reduces gas detector operating costs.

Ordering Information

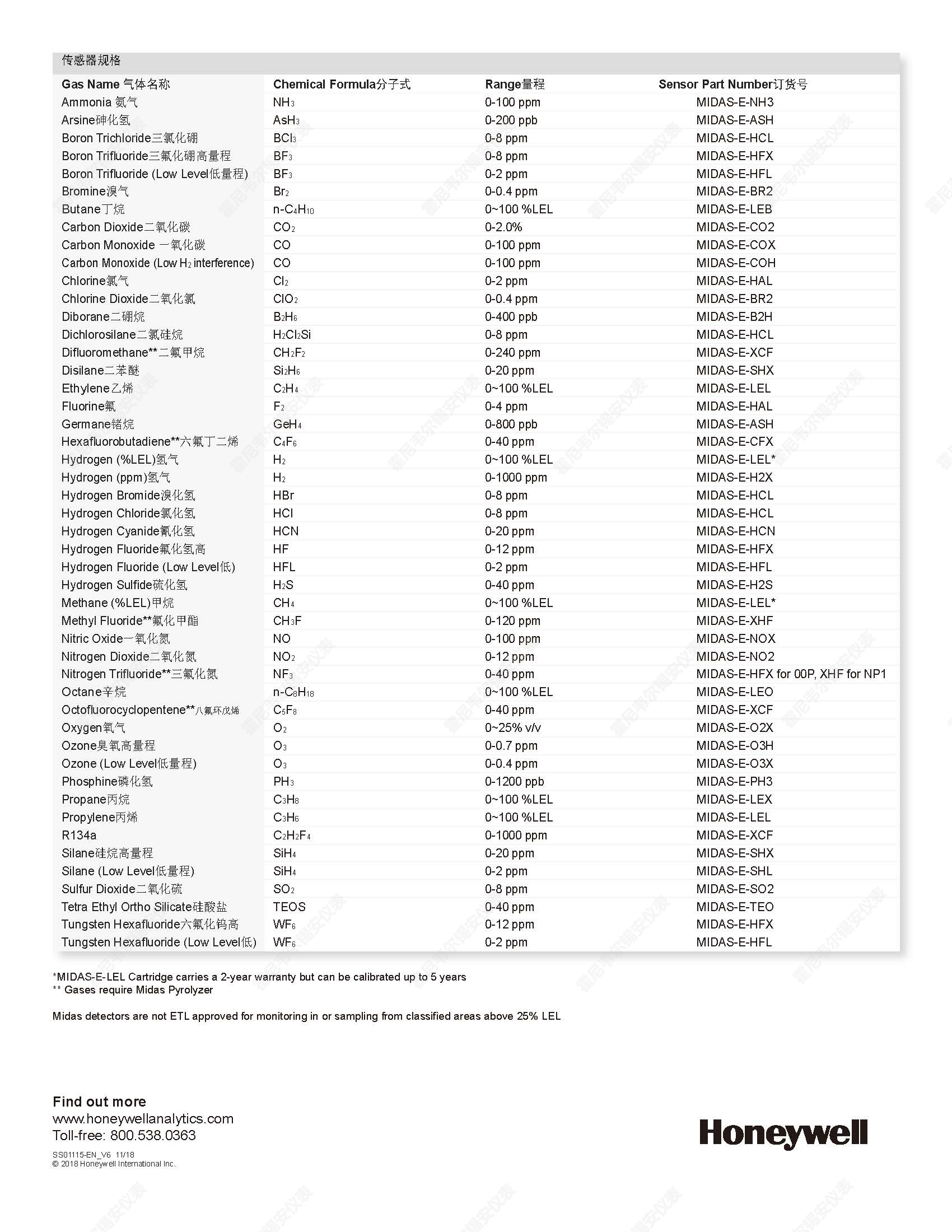

《midas_datasheet_.pdf》 Sensor Part Number , MIDAS SensorPart NumberRange(Price excluded).
